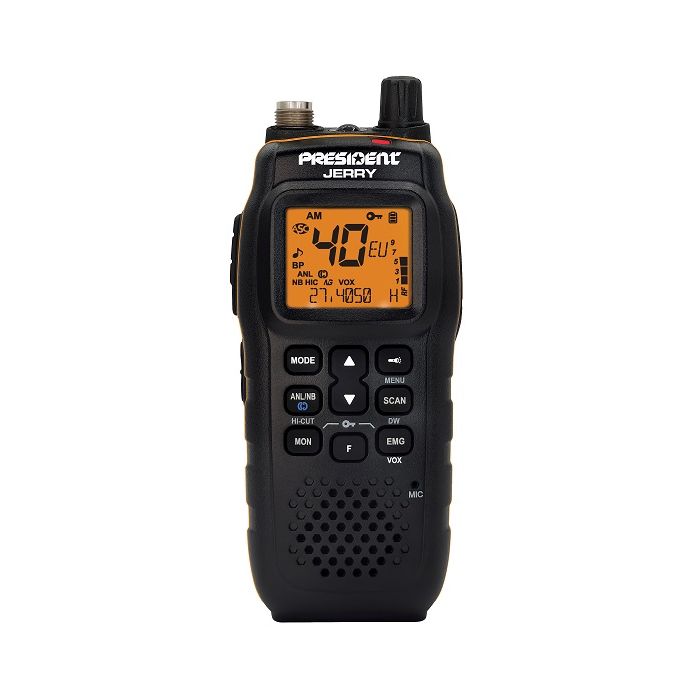

Walkie talkie President JERRY

Walkie talkie President JERRY

Transceiver CB Portable
Multiband – Multi Standards (7)
Frequency Range: 40 Channels (26.965 – 27.405 MHz)
Modulation Modes: AM / FM
Output Power: Max 4 Watt AM / 4 Watt FM
Antenna Connection: TNC-Female
Audio Accessory Jack 2-Pin, 2.5mm/3.5mm, STANDARD WIRING. (Type-S)

Channel selector: up / down
Volume: Volume adjustment and ON/OFF
RF Power
Squelch: Manual squelch and ASC
Display LCD multifunction
Frequencies display
S-meter: Digital
Vox
Tone
Filter ANL
Filter NB
Filter HI-CUT
Compander
Noise Gate
Scan
Scan Skip
F / Menu function key
Key Beep
Roger beep
Dual watch
Key locking
Preset channel: EMG (personalizable)
Microphone plug: jack Ø 2.5 mm
External Vox microphone jack
External loudspeaker jack
Technical characteristics
Number of channels: 40
Modulation modes: AM/FM
Frequency ranges: from 26,965 MHz to 27,405 MHz
Antenna impedance: 50 Ohms
Power supply: 7.4 Volt (Handheld configuration) / 13.2 Volt (Mobile Configuration)
Size: 152 (H) x 66,5 (L) x 37 (W) mm
Weight: 305 gram with battery / 350 gram with battery + antenna
Loud speaker: 16 Ohms, 1 Watt

Transmission
Frequency allowance : +/- 200 Hz
Carrier power: 4 W AM / 4 W FM
Transmission interference: inferior to 4 nW (- 54 dBm)
Audio response: 300 Hz to 3 KHz
Emitted power in the adj. channel: inferior to 20 µW
Microphone sensitivity: 7 mV
Drain: 1,8 A max.
Modulated signal distortion: 2 %
Reception
Maxi. sensitivity at 20 dB sinad: 0.5 µV – 113 dBm AM / 0.35 µV – 116 dBm FM
Frequency response: 300 Hz to 3 kHz
Adjacent channel selectivity: 60 dB
Maximum audio power: 1 Watt
Squelch sensitivity: min. 0,2 µV – 120 dBm / max. 1 mV – 47 dBm
Frequency image rejection rate: 60 dB
Intermediate frequency rej. rate: 70 dB
Drain: Mode ECO

PACKING INCLUDES:
1 Pc of Transceiver
1 Pc of Antenna
1 Pc of Battery Pack
1 Pc of Mobile Car Charger
1 Pc of User ManualWalkie talkie President JERRY

Transceiver CB Portable
Multiband – Multi Standards (7)

• Frequency Range: 40 Channels (26.965 – 27.405 MHz)
• Modulation Modes: AM / FM
• Output Power: Max 4 Watt AM / 4 Watt FM
• Antenna Connection: TNC-Female

Audio Accessory Jack 2-Pin, 2.5mm/3.5mm, STANDARD WIRING. (Type-S)

• Channel selector: up / down
• Volume: Volume adjustment and ON/OFF

RF Power

• Squelch: Manual squelch and ASC

Display LCD multifunction
Frequencies display

• S-meter: Digital

Vox
Tone
Filter ANL
Filter NB
Filter HI-CUT
Compander
Noise Gate
Scan
Scan Skip
F / Menu function key
Key Beep
Roger beep
Dual watch
Key locking

• Preset channel: EMG (personalizable)
• Microphone plug: jack Ø 2.5 mm

External Vox microphone jack
External loudspeaker jack

Technical characteristics

• Number of channels: 40
• Modulation modes: AM/FM
• Frequency ranges: from 26,965 MHz to 27,405 MHz
• Antenna impedance: 50 Ohms
• Power supply: 7.4 Volt (Handheld configuration) / 13.2 Volt (Mobile Configuration)
• Size: 152 (H) x 66,5 (L) x 37 (W) mm
• Weight: 305 gram with battery / 350 gram with battery + antenna
• Loud speaker: 16 Ohms, 1 Watt

Transmission

• Frequency allowance : +/- 200 Hz
• Carrier power: 4 W AM / 4 W FM
• Transmission interference: inferior to 4 nW (- 54 dBm)
• Audio response: 300 Hz to 3 KHz
• Emitted power in the adj. channel: inferior to 20 µW
• Microphone sensitivity: 7 mV
• Drain: 1,8 A max.
• Modulated signal distortion: 2 %

Reception

• Maxi. sensitivity at 20 dB sinad: 0.5 µV – 113 dBm AM / 0.35 µV – 116 dBm FM
• Frequency response: 300 Hz to 3 kHz
• Adjacent channel selectivity: 60 dB
• Maximum audio power: 1 Watt
• Squelch sensitivity: min. 0,2 µV – 120 dBm / max. 1 mV – 47 dBm
• Frequency image rejection rate: 60 dB
• Intermediate frequency rej. rate: 70 dB
• Drain: Mode ECO

PACKING INCLUDES:
1 Pc of Transceiver
1 Pc of Antenna
1 Pc of Battery Pack
1 Pc of Mobile Car Charger
1 Pc of User Manual
