Walkie Talkie alan rc42 PORTABEL W

Transceiver CB Portable, AM/FM, Multi Standard
Long description: Introduction:

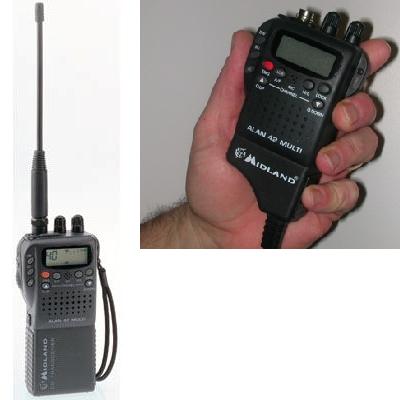

ALAN42 MULTI is a small-size portable transceiver which guarantees the best performance during the years even under heavy conditions. What is unique to this innovative transceiver is the capability to select any of the European CB bands with an easy and fast procedure. ALAN42 MULTI has a built-in Channel Phase Loop synthesizer(PLL) circuit and an automatic battery economy circuit. The wide display can be illuminated and allows the night use. Optional microphones can be connected to the equipment thanks to the external mike plug situated on the upper side of the radio. The unit is preset at the factory on the EC band, CEPT 40CH FM 4W.

Features, Functions and Specifications:
Channels: 40 / 80 see Frequency band chart
Frequency range: 25.615 – 30.105MHz
Operating mode: F3E(FM), A3E(AM)
Antenna impedance: 50 Ohm
Loudspeaker: 8 Ohm 0.5W
Microphone: condenser type
Power supply: 7.2 / 13,2 nom 12V
Dimensions: 30 x 70 x 140 mm
Weight: 220 gr.(without batteries)

Receiver:
Sensitivity at 10dB S/N: 0.5uV(AM), 0.25uV(FM)
Selectivity: more than 60dB
Squelch range: 0.25V-500uV
Audio output power: 0.5W 8ohm(10%distortion)
Distortion at 1000uV: 3%
Audio frequency response: 400 – 2400 Hz
Intermediate frequency: first 10.695 MHz, second 455 KHz
Spurious response: more than 60 dB
Current drain at stanby: 100 mA when the save mode is off, 40 mA when the save mode is on

Transmitter:
RF Output Power: duty cycle 10% 4W AM/FM
Frequency Tolerance: 0.005%
Harmonic Suppression: more than 70 dB
Current Drain: 900 mA
Modulation: AM 90% (+/-5%), FM dev. 2.0 KHz

Frequency Band Chart:
I: Italy 40 CH AM/FM 4Watt (26.965-27.405)
I2: Italy 34 CH AM/FM 4Watt (26.875-27.265)
D: Germany 80 CH FM 4Watt / 12 CH AM 1Watt
D2: Germany 40 CH FM 4Watt / 12 CH AM 1Watt
EU: Europe 40 CH FM 4Watt / 40 CH AM 1Watt
EC: CEPT 40 CH FM 4Watt
E: Spain 40 CH AM/FM 4Watt
F: France 40 CH FM 4Watt / 40 CH AM 1Watt
UK: England 40 CH FM 4 Watt English frequencies + EC 40 CH FM 4Watt CEPT frequencies

Packing Includes:
Transceiver, Wrist Strap, Battery Holder for Alkaline Batteries, Battery Holder for Rechargable Batteries, Antenna, Adapter charger CA42, Carry Case, Slide Adapter to use transceiver on 12V inside the car, User Manual in Italian English German Spanish French Portugese, Polish.
