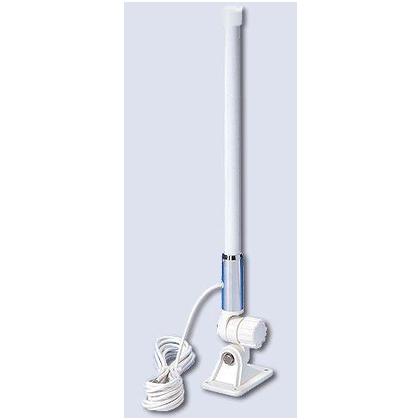

cell mariner gsm bootantenne

Features:
Marine antenna, Mono-band
Unity-gain, Omnidirectional
Perfect protection against the worst weather conditions
Protection from static discharges DC-Ground
Chrome-plated brass ferrule ò 180¦ inclination and adjustable whip
Supplied with white coaxial cable RG-58 C/U directly connected
For GSM system P/N 2331220.83 CELL 900 MARINER Electrical data
Type: 1/2 ; J-pole
Frequency range: for GSM system (880-960 MHz)
Impedance: 50 W unbalanced
Radiation (H-plane): 360¦ omnidirectional ò Radiation (E-plane): beamwidth at -3 dB Radiation angle:
Polarization: vertical
Gain: 2.15 dBi
S.W.R. in bandwidth: TX-band 1.8:1, RX-band 2.4:1
Max. power: 30 Watts (CW) at 50¦ C
Feed system / position: Direct DC-ground / base
Standard mount: ""M-8"" NY
Cable length / Type: 5 m / white RG 58
Connector: FME-female Mechanical data
Materials: Chromed Brass, Glass fibre, Nylon
Height (approx.): 420 mm
Weight (approx.): 470 gr
