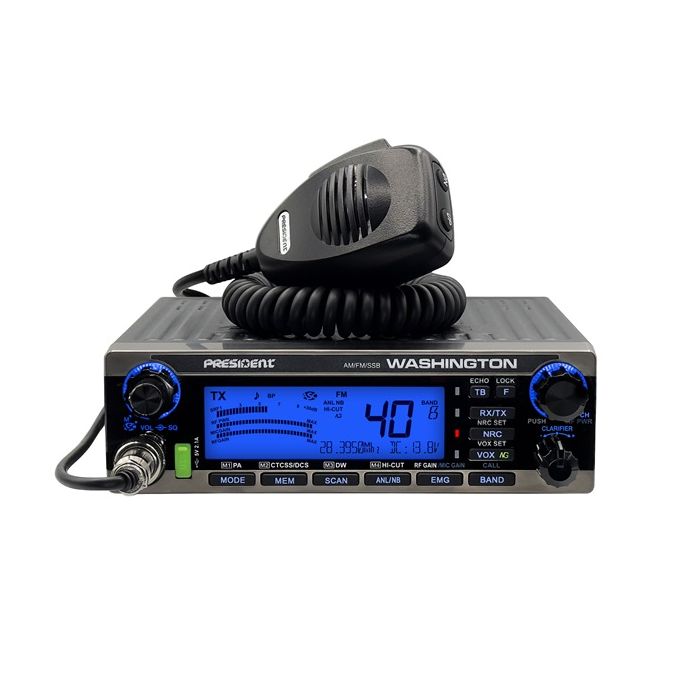

Cb zender president WASHINGTON

Cb zender president WASHINGTON

Size (mm): 170 (W) x 250 (D) x 52 (H)
Weight: 1,4 kg
Accessories supplied: 1 microphone UP/DOWN and its hanger, 1 mounting racket with fixing screws, power cord with fuse
Antenna socket: SO-239
Antenna impedance: 50 Ohms
Multiconfiguration: EU / U / D / PL / IN
Frequency ranges: from 24.890 MHz to 24.990 MHz and from 28.000 MHz to 29.700 MHz (continuous scanning)
Power supply: Nominal 13.8V DC, negative ground (10.5 VDC to 16.0 VDC)
Microphone plug: front (6-Pins)
Compatible microphone type: Electret, Dynamic
External Vox microphone jack
External loudspeaker jack
Public address
External HP PA socket
USB socket (front): 5 V / 2,1 A
Display: LCD multifunction
Dimmer
Frequencies display
Band name
S-meter: Digital
Modulation modes: AM / FM / USB / LSB
Volume adjustment and ON/OFF
Squelch: Manual squelch
ASC
Channel selector: Rotary
Mode switch
F / Menu function key
Key Beep: Switchable
Roger beep:Switchable, 6 tones
Key locking
Tone
Memory: 4
Channel preselection: 2, channel 9 & 19, emergency channel (EMG) Programmable
Span
Dual watch
Scan: channels, memories
Scan Skip
RF Power
RF Gain
Mike-Gain
Clarifier
Talkback
Vox
Automatic SWR meter
SWR (Power Reading /SWR)
Echo
CALL function
TOT
Filter ANL
Filter NB
Filter HI-CUT
NRC
Noise Gate
CTCSS: 38 tones
DCS: 104 codes
Notes: FANS (Options – Not included with the radio)
Transmission:
Frequency allowance : ± 200 Hz
Carrier power: 70 W PEP (AM/USB/LSB) / 50 W (FM)
Power limitation: 4/10W
APM
Transmission interference: < 4 nW (-54 dBm)
Audio response: 300 Hz to 3 kHz
Emitted power in the adj. Channel: < 20 V
Microphone sensitivity: 3 mV
Drain: 6 A (with modulation)
Modulated signal distortion: 2%

Reception:
Max. sensitivity at 20 dB sinad: 0.7 V – 110 dBm (AM) / 0.35 V – 116 dBm M) / 0.28 V – 118 dBm (USB/LSB/CW)F
Frequency response: 300 Hz to 3 kHz
Adjacent channel selectivity: 60 dB
Maximum audio power: 3 Watt
Squelch sensitivity: min. 0.2 V – 120 dBm / max. 1 mV – 47 dBm
Frequency image rejection rate: 60 dB
Intermediate frequency rej. Rate: 70 dB
Drain: 400 mA nominal / 600 mA max.

PACKING INCLUDES:
1 Pc of Transceiver
1 Pc of Microphone
1 pc of Power Cord
1 Pc of Bracket
1 Pc of Mounting Materials
1 pc of User Manual in French, English, Spanish and Polish
