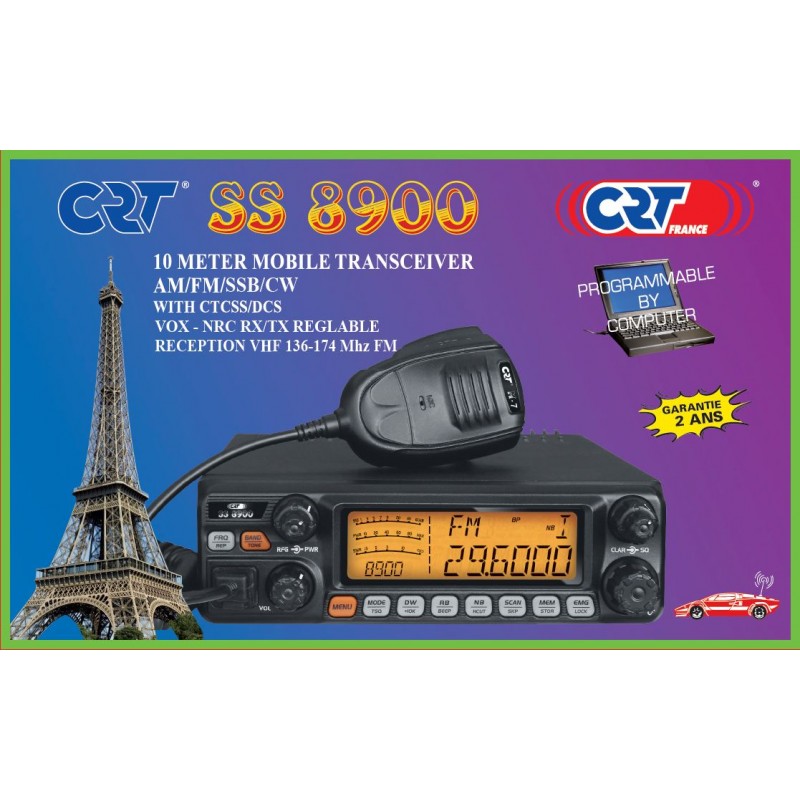

Cb Zender CRT SS8900

Cb Zender CRT SS8900

AMATEUR RADIO (restriction : in emission use with amator radio certificate obligatory)
Mode AM / FM / LSB / USB / CW
Frequency range 28 – 29.7 mHz
Receptor VHF FM 136-174 mHz (possibility of 99 memories)
Power 60W with modulation AM / 50W FM / 60W SSB (réglable AM/FM/SSB)
Input voltage 13.8V DC
Memories 6
Step of increment 100Hz / 1kHz / 5kHz / 10kHz / 100kHz / 1mHz
S-METER AGC S-METER SPEED : 2 levels available
CLARIFIER Yes : clarifies the voice in SSB (range ± 500Hz/± 5kHz))
RELAY MOD / OFFSET / SPLIT Yes : allows to enter a relay with two different frequency
SQUELCH Automatic (ASQ)- 9 automatic squelch levels
ROGER BEEP Yes : TX beep end (off / 1-5)
RF GAIN Yes : adjust sensibility on RX
MICRO GAIN Yes : (via menu) adjusts the gain of increasing or decreasing the audio power (1-36levels)
CTCSS / DCS (encoder/decoder) 38 CTCSS / 104 DCS : sub-audio code to activate repeater like selective tone (RX setup / TX setup / RX+TX setup)
Filters NB/HI CUT Yes : noise filters
NRC filter function Yes : RX/TX noise reduction -adjustable 5 levels- particularly effective in SSB
SPLIT function Yes : allows to transmit and receive on two different frequencies in half duplex
DOUBLE WATCH function Yes
VOX function Yes : this feature triggers your microphone sound (hands free) (9 sensitivity levels + VOX delay time + VOX speaker)
TOT function Yes : time out timer (off/adjustable up to 600 seconds)
CTCSS / DCS SCAN function Yes : code search by SCAN
SCAN function Yes : automatic search of busy channels
RESET function Yes: in the event of a malfunction or incorrect handling, it is possible to restore the factory settings or reset the functions
Various functions Selection FM deviation 4K (Default 2.5K)+ Emergency Channel + (+) 10kHz function / ECHO on/off (32levels) / MONITORING + OFFSET function + SWR protection + Beep function keys + Keypad lock
Bonus Clarifier frequency display – Oversized radiators to dissipate heat
Mike electret type – UP/DOWN selection (plug in front pannel) Microphone type selection : electret or dynamic
Display BIG LCD display + DIMMER function : 5 backlight dimmer levels available
Level display BIG DISPLAYING FREQUENCY or channel + Viewing the modulation mode + Indicator signal reception and transmission + SWR level indicator
Options Programming cable + software
Programmable by software Yes
Includ Detachable power cable + fixing bracket + screws + microphone holder + manual in French&English
Size 200(l)x230(L)x60(h) ULTRA COMPACT SIZES !
Weight 1.5 kgs
Guaranty 2 yearsCb Zender CRT SS8900

• AMATEUR RADIO (restriction : in emission use with amator radio certificate obligatory)

Mode AM / FM / LSB / USB / CW
Frequency range 28 – 29.7 mHz
Receptor VHF FM 136-174 mHz (possibility of 99 memories)
Power 60W with modulation AM / 50W FM / 60W SSB (réglable AM/FM/SSB)
Input voltage 13.8V DC
Memories 6
Step of increment 100Hz / 1kHz / 5kHz / 10kHz / 100kHz / 1mHz

• S-METER AGC S-METER SPEED : 2 levels available
• CLARIFIER Yes : clarifies the voice in SSB (range ± 500Hz/± 5kHz))
• RELAY MOD / OFFSET / SPLIT Yes : allows to enter a relay with two different frequency

SQUELCH Automatic (ASQ)- 9 automatic squelch levels

• ROGER BEEP Yes : TX beep end (off / 1-5)
• RF GAIN Yes : adjust sensibility on RX
• MICRO GAIN Yes : (via menu) adjusts the gain of increasing or decreasing the audio power (1-36levels)
• CTCSS / DCS (encoder/decoder) 38 CTCSS / 104 DCS : sub-audio code to activate repeater like selective tone (RX setup / TX setup / RX+TX setup)
• Filters NB/HI CUT Yes : noise filters
• NRC filter function Yes : RX/TX noise reduction -adjustable 5 levels- particularly effective in SSB
• SPLIT function Yes : allows to transmit and receive on two different frequencies in half duplex

DOUBLE WATCH function Yes

• VOX function Yes : this feature triggers your microphone sound (hands free) (9 sensitivity levels + VOX delay time + VOX speaker)
• TOT function Yes : time out timer (off/adjustable up to 600 seconds)
• CTCSS / DCS SCAN function Yes : code search by SCAN
• SCAN function Yes : automatic search of busy channels
• RESET function Yes: in the event of a malfunction or incorrect handling, it is possible to restore the factory settings or reset the functions

Various functions Selection FM deviation 4K (Default 2.5K)+ Emergency Channel + (+) 10kHz function / ECHO on/off (32levels) / MONITORING + OFFSET function + SWR protection + Beep function keys +
Keypad lock
Bonus Clarifier frequency display – Oversized radiators to dissipate heat

• Mike electret type – UP/DOWN selection (plug in front pannel) Microphone type selection : electret or dynamic
• Display BIG LCD display + DIMMER function : 5 backlight dimmer levels available

Level display BIG DISPLAYING FREQUENCY or channel + Viewing the modulation mode + Indicator signal reception and transmission + SWR level indicator
Options Programming cable + software
Programmable by software Yes
Includ Detachable power cable + fixing bracket + screws + microphone holder + manual in French&English
Size 200(l)x230(L)x60(h) ULTRA COMPACT SIZES !
Weight 1.5 kgs
Guaranty 2 years

Gewicht	4.000 kg
