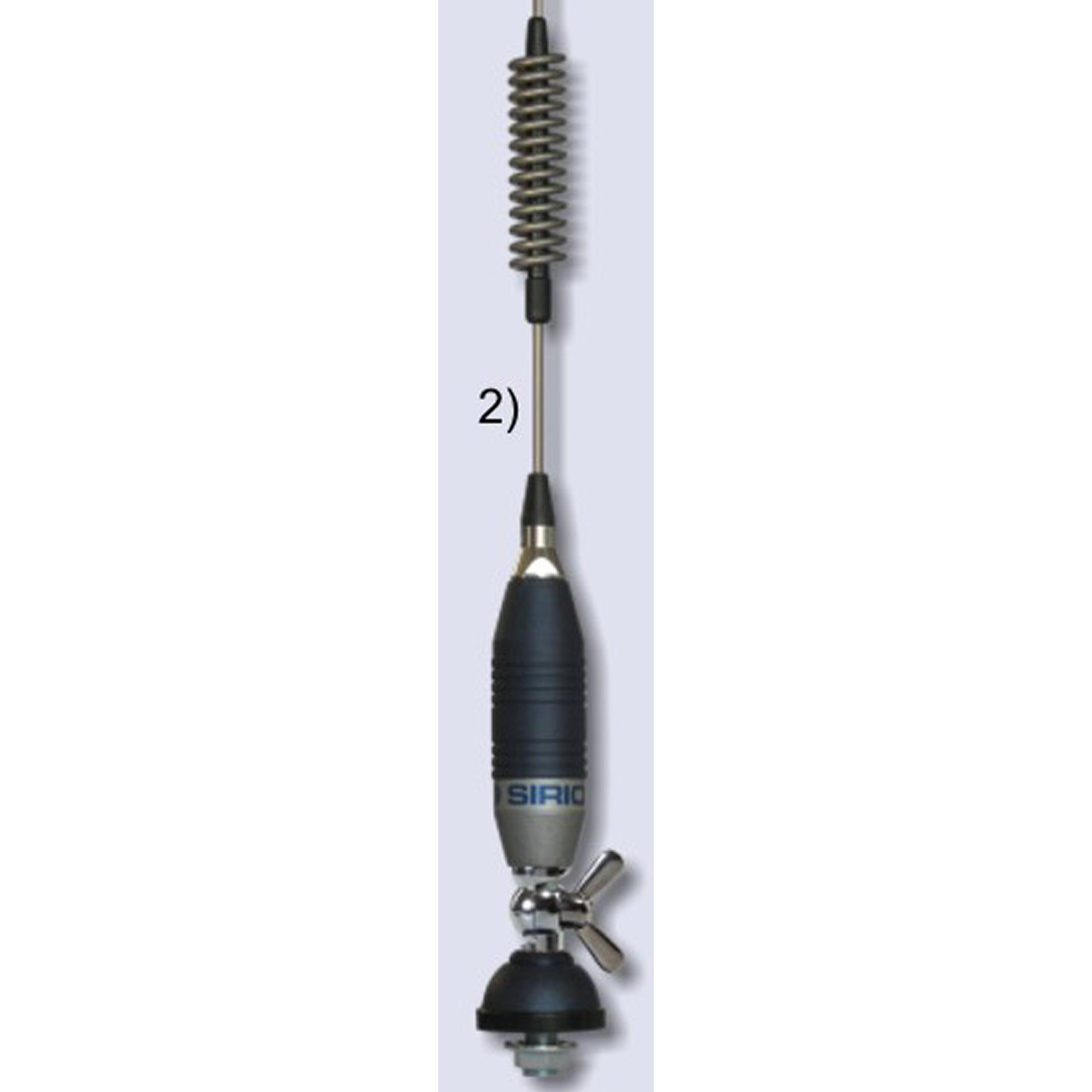

Cb Antenne super 900

Super 70 Chrome cb antenne
CB & 10m Mobile antenna.
Tunable from 27 to 28.5 MHz
SUPER 70, SUPER9: 17/7 PH tapered stainless steel whip
SUPER 900: 17/7 PH stainless steel spring whip
180° Adjustable whip
Detachable for car-wash
SUPER 9: safety set enclosed
SUPER 900 blue line: NEW MODEL

PART NUMBERS:
P/N 2230305.01/BLUE SUPER 70 blue line
P/N 2229905.01/BLUE SUPER 900 blue line
P/N 2230005.01/BLUE SUPER 9 blue line

ELECTRICAL DATA:
Type: base loaded
Frequency range: 27 … 28.5 MHz
Impedance: 50 O
Polarization: linear vertical
Bandwidth @ SWR = 2:
… SUPER 70 : = 1200 KHz (100 channel)
… SUPER 900: = 1100 KHz (100 channel)
… SUPER 9 : = 1900 KHz (170 channel)
Max. power:
… SUPER 70 : 15 Watts (CW) continuous; 150 Watts (CW) short time
… SUPER 900: 15 Watts (CW) continuous; 150 Watts (CW) short time
… SUPER 9 : 35 Watts (CW) continuous; 250 Watts (CW) short time
Standard mount: N
Cable lenght / Type: 4 m / RG 58

MECHANICAL DATA:
Materials: Brass, Copper, Nylon, Stainless Steel
Height (approx.):
… SUPER 70 : 700mm
… SUPER 900: 780mm
… SUPER 9 : 1550 mm
Weight (approx.):
… SUPER 70 : 380 gr
… SUPER 900: 450 gr
… SUPER 9 : 420 gr
Mounting hole: Ø 12.5 mm

PACKING INCLUDES:
1 Pc of Antenna
1 Pc of Cable
1 PC of USER Manual in English and Italian

Super 70 Chrome cb antenne
CB & 10m Mobile antenna.
Tunable from 27 to 28.5 MHz

• SUPER 70, SUPER9: 17/7 PH tapered stainless steel whip
• SUPER 900: 17/7 PH stainless steel spring whip

180° Adjustable whip
Detachable for car-wash

• SUPER 9: safety set enclosed
• SUPER 900 blue line: NEW MODEL

PART NUMBERS:
P/N 2230305.01/BLUE SUPER 70 blue line
P/N 2229905.01/BLUE SUPER 900 blue line
P/N 2230005.01/BLUE SUPER 9 blue line

ELECTRICAL DATA:

• Type: base loaded
• Frequency range: 27 … 28.5 MHz
• Impedance: 50 O
• Polarization: linear vertical

Bandwidth @ SWR = 2:

• SUPER 70 : = 1200 KHz (100 channel)
• SUPER 900: = 1100 KHz (100 channel)
• SUPER 9 : = 1900 KHz (170 channel)

Max. power:

• SUPER 70 : 15 Watts (CW) continuous; 150 Watts (CW) short time
• SUPER 900: 15 Watts (CW) continuous; 150 Watts (CW) short time
• SUPER 9 : 35 Watts (CW) continuous; 250 Watts (CW) short time
• Standard mount: N
• Cable lenght / Type: 4 m / RG 58

MECHANICAL DATA:

• Materials: Brass, Copper, Nylon, Stainless Steel

Height (approx.):

• SUPER 70 : 700mm
• SUPER 900: 780mm
• SUPER 9 : 1550 mm

Weight (approx.):

• SUPER 70 : 380 gr
• SUPER 900: 450 gr
• SUPER 9 : 420 gr
• Mounting hole: Ø 12.5 mm

PACKING INCLUDES:
1 Pc of Antenna
1 Pc of Cable
1 PC of USER Manual in English and Italian
