L298 New Dual H Bridge DC Stepper Motor

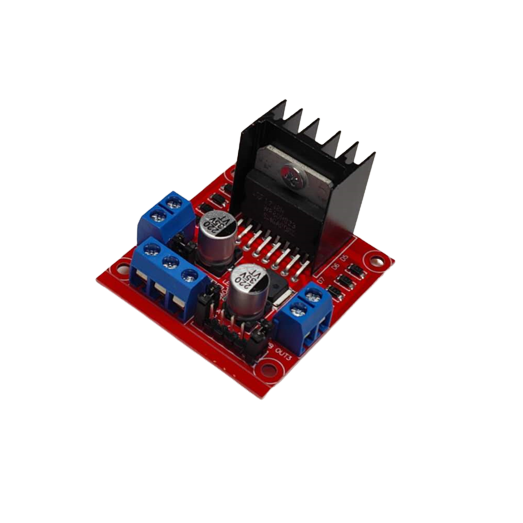

L298 New Dual H Bridge DC Stepper Motor Drive Controller Board Module (2A MAX per bridge) Bi-Direction

The module employs L298N as the primary drive chip, noted for its robust driving capacity, minimal heat generation, and excellent resistance to interference.

It′s designed with an inbuilt 78M05 for drive power supply, which can be used when the driving voltage is less than or equal to 12V. However, to avoid damaging the voltage regulator chip, an external 5V power source is recommended for logic when the driving voltage exceeds 12V.

The module includes a high-capacity filter capacitor and a continuation protection diode, enhancing its reliability.L298 New Dual H Bridge DC Stepper Motor Drive Controller Board Module (2A MAX per bridge) Bi-Direction

The module employs L298N as the primary drive chip, noted for its robust driving capacity, minimal heat generation, and excellent resistance to interference.

It’s designed with an inbuilt 78M05 for drive power supply, which can be used when the driving voltage is less than or equal to 12V. However, to avoid damaging the voltage regulator chip, an external
5V power source is recommended for logic when the driving voltage exceeds 12V.

The module includes a high-capacity filter capacitor and a continuation protection diode, enhancing its reliability.
