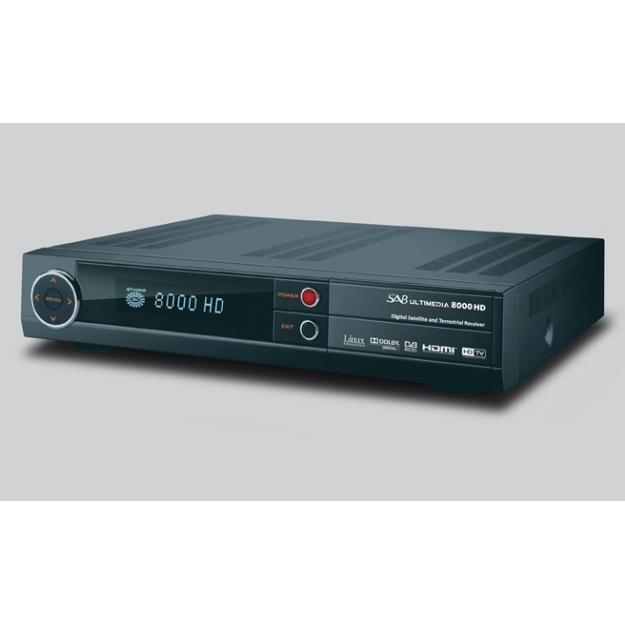

SAB Ultimedia 8000 HD RECEIVER

SAB Ultimedia 8000 HD RECEIVER
DVB-S/S2 Tuner And Channel
RF Input Range: 950MHz ~ 2150MHz
Input Connector: F-Type Female (With Loop-Through Output)
Input Impedance: 75[Ohm]
Input Dynamic Range: -65dBm -25dBm
Multi Demodulation Standard: DVB-S, DVB-S2 : QPSK, 8PSK
Symbol Rate: DVB-S : QPSK Maximum 45Msps 2 45Msps
DVB-S2 : 8PSK/QPSK Maximum 30Msps 10 30Msps
Multi Decoding Method Standard: LDPC/BCH DVB-S2(1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10)

DVB-S/S2 MPEG TS A/V Decoding
Transport Stream Format: MPEG-4 Part10 AVC/H.264 HD HP@L4.1 1920×1080 50Hz(ISO/IEC 13818 MPEG-2 TS Specifications)
Profile Level: MPEG-2 MP HL, MPEG-4 Part10 AVC/H.264 HD HP L4.1
Input Rate: Maximum 90Mb/s
Video Aspect Ratio: 4:3, Letter Box, 16:9, Pan & Scan
Video Display Resolution: 1920x1080i, 1280x720p, 720x576i/p, 720x480i/p 50/60Hz
Audio Decoding Format: Dolby Digital bit-streams, MPEG-1 Layer 1,2,3
Audio Output Mode: Mono, Left, Right, Stereo, Dolby Digital bit-streams(PCM 5.1 Channel, Stereo down-mixed Dolby ProLogic)

DVB-T Tuner And Channel
RF Input Range: VHF-High Band 149.5MHz ~ 426MHz,
VHF-Low Band 50.5MHz ~ 142.5MHz, UHF-Band 434MHz ~ 858MHz
Input/ Loop-Through Output Connector: 1 x Din Jack for DVB-T, 1x Din Jack for DVB-T Loop-Through Output
(IEC 169-2 Female/Male)
Input Impedance: 75[Ohms] Nominal
Input Signal Level: -80dBm ~ -5dBm(64QAM, Code Rate 2/3, Guard Interval 1/32,
Gaussian Channel)
Digital Modulation Scheme: QPSK, 16-QAM, 64-QAM(Constellation)
Guard Interval: 1/4, 1/8, 1/16 and 1/32
Modulation Mode: 2K, 4k, 8K modes
Supporting System: DVB-T(COFDM) Compliant (Frequency Band Modulation) ETSI 300 744
IF BandWidth: 6/7/8MHz channel
FEC Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8 DVB-T MPEG TS A/V Decoding
Transport Stream Format: MPEG-4 Part10 AVC/H.264 HD HP@L4.1 1920×1080@50/60Hz(MPEG-2 ISO/IEC 13818 Transport Stream Specification)
Profile Level: MPEG-2 MP@HL, MPEG-4 Part10 AVC/H.264 HD HP@L4.1
Input Rate: Maximum 31.668450Mb/s, 27.709893Mb/s
Video Aspect Ratio: 4:3, Letter Box, 16:9, Pan & Scan
Video Display Resolution: 1920x1080i, 1280x720p, 720x576i/p, 720x480i/p @ 50/60Hz
Audio Decoding Format: Dolby Digital bit-streams, MPEG-1 Layer 1,2,3
Audio Output Mode: Mono, Left, Right, Stereo, Dolby Digital bit-streams(PCM 5.1 Channel, Stereo down-mixed Dolby ProLogic)

A/V And Data Output
Analog Component YPbPr: 1 Set(3xRCA Vertical Array Type)
CVBS(Composite Video), Stereo Audio: 1 Set(3xRCA Vertical Array Type)
S/PDIF Dolby Digital Interface: 1 Optical(Fiber Optic Type)
HDMI (with HDCP Option): 1 Connector
SCART Interface: TV/VCR
USB2.0 Host Interface: 2 USB A-Type Connector
Ethernet: 1 Connector RJ-45 10/100 Base-T
RS-232C Data Port D-Sub9 Interface: Transfer Rate 115,200bps(Firmware Upgrade Port)

Conditional Access Interface
PCMCIA: 2 Slots For DVB Common Interface Standard
Smart Card: 2 Smart Card Support

Storage Device
SATA(Serial ATA): 1 External eSATA Port

System Resource Information
Main Processor: 300MHz MIPS32TM/16-e class CPU
Flash ROM: Default 32Mbytes
DDR SDRAM: Default 256Mbytes

Power Supply
Input Voltage: AC 100-240V ~ 50/60Hz
Power Consumption: Maximum 35Watts
Protection: Separate Internal Fuse
Type: SMPS(Switching Mode Power Supply)
Safety And EMI: For Country Regulation

Physical Specification
Dimension(WxDxH): 340x268x60[mm]
Net Weight: About 3.0Kg
Operation Temperature: 5°C ~ 50°C
Storage Temperature: -40°C ~ 65°CSAB Ultimedia 8000 HD RECEIVER
DVB-S/S2 Tuner And Channel

• RF Input Range: 950MHz ~ 2150MHz
• Input Connector: F-Type Female (With Loop-Through Output)
• Input Impedance: 75[Ohm]
• Input Dynamic Range: -65dBm ~ -25dBm
• Multi Demodulation Standard: DVB-S, DVB-S2 : QPSK, 8PSK
• Symbol Rate: DVB-S : QPSK Maximum 45Msps @ 2~45Msps
• DVB-S2 : 8PSK/QPSK Maximum 30Msps @ 10~30Msps
• Multi Decoding Method Standard: LDPC/BCH DVB-S2(1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10)

DVB-S/S2 MPEG TS A/V Decoding

• Transport Stream Format: MPEG-4 Part10 AVC/H.264 HD HP@L4.1 1920×1080@50Hz(ISO/IEC 13818 MPEG-2 TS Specifications)
• Profile Level: MPEG-2 MP@HL, MPEG-4 Part10 AVC/H.264 HD HP@L4.1
• Input Rate: Maximum 90Mb/s
• Video Aspect Ratio: 4:3, Letter Box, 16:9, Pan & Scan
• Video Display Resolution: 1920x1080i, 1280x720p, 720x576i/p, 720x480i/p @ 50/60Hz
• Audio Decoding Format: Dolby Digital bit-streams, MPEG-1 Layer 1,2,3
• Audio Output Mode: Mono, Left, Right, Stereo, Dolby Digital bit-streams(PCM 5.1 Channel, Stereo down-mixed Dolby ProLogic)

DVB-T Tuner And Channel

• RF Input Range: VHF-High Band 149.5MHz ~ 426MHz,

VHF-Low Band 50.5MHz ~ 142.5MHz, UHF-Band 434MHz ~ 858MHz

• Input/ Loop-Through Output Connector: 1 x Din Jack for DVB-T, 1x Din Jack for DVB-T Loop-Through Output

(IEC 169-2 Female/Male)

• Input Impedance: 75[Ohms] Nominal
• Input Signal Level: -80dBm ~ -5dBm(64QAM, Code Rate 2/3, Guard Interval 1/32,

Gaussian Channel)

• Digital Modulation Scheme: QPSK, 16-QAM, 64-QAM(Constellation)
• Guard Interval: 1/4, 1/8, 1/16 and 1/32
• Modulation Mode: 2K, 4k, 8K modes
• Supporting System: DVB-T(COFDM) Compliant (Frequency Band Modulation) ETSI 300 744
• IF BandWidth: 6/7/8MHz channel
• FEC Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8 DVB-T MPEG TS A/V Decoding
• Transport Stream Format: MPEG-4 Part10 AVC/H.264 HD HP@L4.1 1920×1080@50/60Hz(MPEG-2 ISO/IEC 13818 Transport Stream Specification)
• Profile Level: MPEG-2 MP@HL, MPEG-4 Part10 AVC/H.264 HD HP@L4.1
• Input Rate: Maximum 31.668450Mb/s, 27.709893Mb/s
• Video Aspect Ratio: 4:3, Letter Box, 16:9, Pan & Scan
• Video Display Resolution: 1920x1080i, 1280x720p, 720x576i/p, 720x480i/p @ 50/60Hz
• Audio Decoding Format: Dolby Digital bit-streams, MPEG-1 Layer 1,2,3
• Audio Output Mode: Mono, Left, Right, Stereo, Dolby Digital bit-streams(PCM 5.1 Channel, Stereo down-mixed Dolby ProLogic)

A/V And Data Output

• Analog Component YPbPr: 1 Set(3xRCA Vertical Array Type)
• CVBS(Composite Video), Stereo Audio: 1 Set(3xRCA Vertical Array Type)
• S/PDIF Dolby Digital Interface: 1 Optical(Fiber Optic Type)
• HDMI (with HDCP Option): 1 Connector
• SCART Interface: TV/VCR
• USB2.0 Host Interface: 2 USB A-Type Connector
• Ethernet: 1 Connector RJ-45 10/100 Base-T
• RS-232C Data Port D-Sub9 Interface: Transfer Rate 115,200bps(Firmware Upgrade Port)

Conditional Access Interface

• PCMCIA: 2 Slots For DVB Common Interface Standard
• Smart Card: 2 Smart Card Support

Storage Device

• SATA(Serial ATA): 1 External eSATA Port

System Resource Information

• Main Processor: 300MHz MIPS32TM/16-e class CPU
• Flash ROM: Default 32Mbytes
• DDR SDRAM: Default 256Mbytes

Power Supply

• Input Voltage: AC 100-240V ~ 50/60Hz
• Power Consumption: Maximum 35Watts
• Protection: Separate Internal Fuse
• Type: SMPS(Switching Mode Power Supply)
• Safety And EMI: For Country Regulation

Physical Specification

• Dimension(WxDxH): 340x268x60[mm]
• Net Weight: About 3.0Kg
• Operation Temperature: 5°C ~ 50°C
• Storage Temperature: -40°C ~ 65°C

Gewicht	3.000 kg
