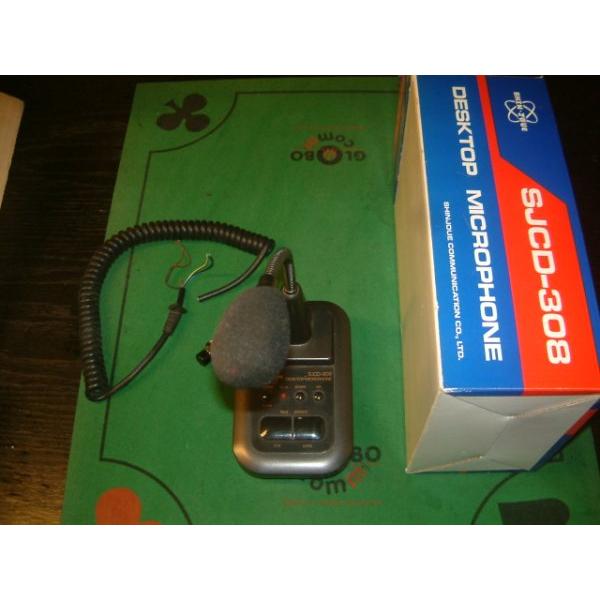

SJCD308 AMATEUR MICROFOON

SJCD308 AMATEUR MICROFOON
GENERAL:
-High-quality low-noise Mic. Amp built-in.
-Highly sensitive condenser microphone and flexible gooseneck employed.
-Voice quality selector switch for FM/SSB.
-Equipped with electronic touch switch for PTT operation.( With LED TX indicator )
-Provided with UP and DOWN switches.
-Usable with microphone cable equipped with power feeding line ( D series cables).
-Connectable with most HAM transceivers available in the market by the conversion cables (microphone interconnecting cables ) optionally available.

FEATURES, FUNCTIONS AND SPECIFICATIONS:
-Microphone : Wide-band Electret Condenser Mic. with IC Built-In.
-IC : 1 piece
-Transistor : 7 pieces
-Diode : 5 pieces
-Output Voltage : 0 – 30 mV ( RMS )
-Output Impedance : 500 – 100k ohms
-Power Voltage : DC 3 V ( UM 3 x 2 pcs. )Not included
D series Mic. Connecting Cord : DC 5 V – DC 9 V
-Power Consumption : 1.5 mA ( RX ) 2.5 mA ( TX )
-Dimensions ( mm ) : 100 (W) x 155 (D) x 310 (H)
-Weight : 450 g
SJCD308 AMATEUR MICROFOON
