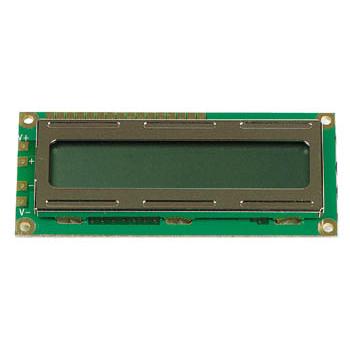

LCD1601A LCD 16×1 BOTTOM VIEW REFLECTIVE

LCD1601A LCD 16×1 BOTTOM VIEW REFLECTIVE

number of characters: 16 x 1
character font: 5 x 7 dots + cursor
duty-bias: 1/16 – 1/4
type: positive
Specifications
backlight: no
LCD type + colour: TN grey
ratings:
supply for LCD driver (Vdd-Vo):
at -20°C: –
at 0°C: 4.8V typ.
at 25°C: 4.4V typ.
at 50°C: 4.1V typ.
at 70°C: –
supply for logic (Vdd-Vss):
at 25°C: 5.0V typ.
operating temperature: 0°C to +50°C
storage temperature: -20°C to +60°C
mechanical:
overall dimensions: 80.0 x 36.0mm
viewing area: 64.5 x 13.8mm
dot size: 0.55 x 0.75mm
character size: 3.07 x 6.56mm
module: H2/H1
without backlight: 5.1/9.7 ± 0.5mm
EL backlight: 5.1/9.7 ± 0.5mm
LED backlight: 9.4/14.0 ± 0.5mm
pin assignment:
power supply (GND): 1 (Vss)
power supply (+5V): 2 (Vdd)
contrast adjust: 3 (Vo)
signal for register selection: 4 (RS)
data read & write: 5 (R/W)
enable signal: 6 (E)
data bus line: 7 (DB0)
data bus line: 8 (DB1)
data bus line: 9 (DB2)
data bus line: 10 (DB3)
data bus line: 11 (DB4)
data bus line: 12 (DB5)
data bus line: 13 (DB6)
data bus line: 14 (DB7)
power supply for BL: 15 (A)
power supply for BL: 16 (K)LCD1601A LCD 16×1 BOTTOM VIEW REFLECTIVE

• number of characters: 16 x 1
• character font: 5 x 7 dots + cursor
• duty-bias: 1/16 – 1/4
• type: positive

• backlight: no
• LCD type + colour: TN grey

• at -20°C: –
• at 0°C: 4.8V typ.
• at 25°C: 4.4V typ.
• at 50°C: 4.1V typ.
• at 70°C: –

• at 25°C: 5.0V typ.
• operating temperature: 0°C to +50°C
• storage temperature: -20°C to +60°C

• overall dimensions: 80.0 x 36.0mm
• viewing area: 64.5 x 13.8mm
• dot size: 0.55 x 0.75mm
• character size: 3.07 x 6.56mm
• module: H2/H1
• without backlight: 5.1/9.7 ± 0.5mm
• EL backlight: 5.1/9.7 ± 0.5mm
• LED backlight: 9.4/14.0 ± 0.5mm

• power supply (GND): 1 (Vss)
• power supply (+5V): 2 (Vdd)
• contrast adjust: 3 (Vo)
• signal for register selection: 4 (RS)
• data read & write: 5 (R/W)
• enable signal: 6 (E)
• data bus line: 7 (DB0)
• data bus line: 8 (DB1)
• data bus line: 9 (DB2)
• data bus line: 10 (DB3)
• data bus line: 11 (DB4)
• data bus line: 12 (DB5)
• data bus line: 13 (DB6)
• data bus line: 14 (DB7)
• power supply for BL: 15 (A)
• power supply for BL: 16 (K)
