monacor dome tweeter dt74/4

monacor dome tweeter dt74/4

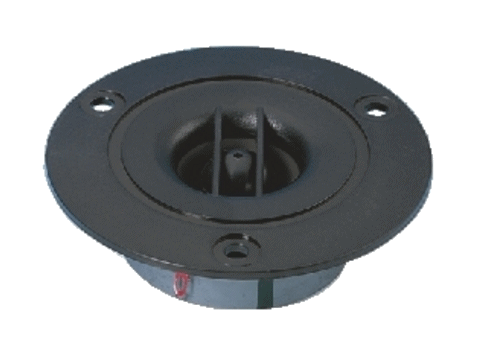

11mm dome with diffuser, extra high efficiency, very brilliant sound similar to some ribbon tweeters, for HiFi and Public Address.

Impedance (Z) 4O
Resonant frequency (fs) 2kHz
Max. frequency range fx-18kHz
Rec. crossover freq. (12dB) 5kHz
Music power 30WMAX
Power rating 15WRMS
SPL (1W/1m) 98dB
Voice coil diameter 11mm
Magnet diameter 45.5mm
Mounting cutout Ø 50mm
Mounting depth 24mm
Dimensions Ø 74mm
Weight 0.115kg monacor dome tweeter dt74/4
11mm dome with diffuser, extra high efficiency, very brilliant sound similar to some ribbon tweeters, for HiFi and Public Address.

Impedance (Z) 4O
Resonant frequency (fs) 2kHz
Max. frequency range fx-18kHz
Rec. crossover freq. (12dB) 5kHz
Music power 30WMAX
Power rating 15WRMS
SPL (1W/1m) 98dB
Voice coil diameter 11mm
Magnet diameter 45.5mm
Mounting cutout Ø 50mm
Mounting depth 24mm
Dimensions Ø 74mm
Weight 0.115kg
