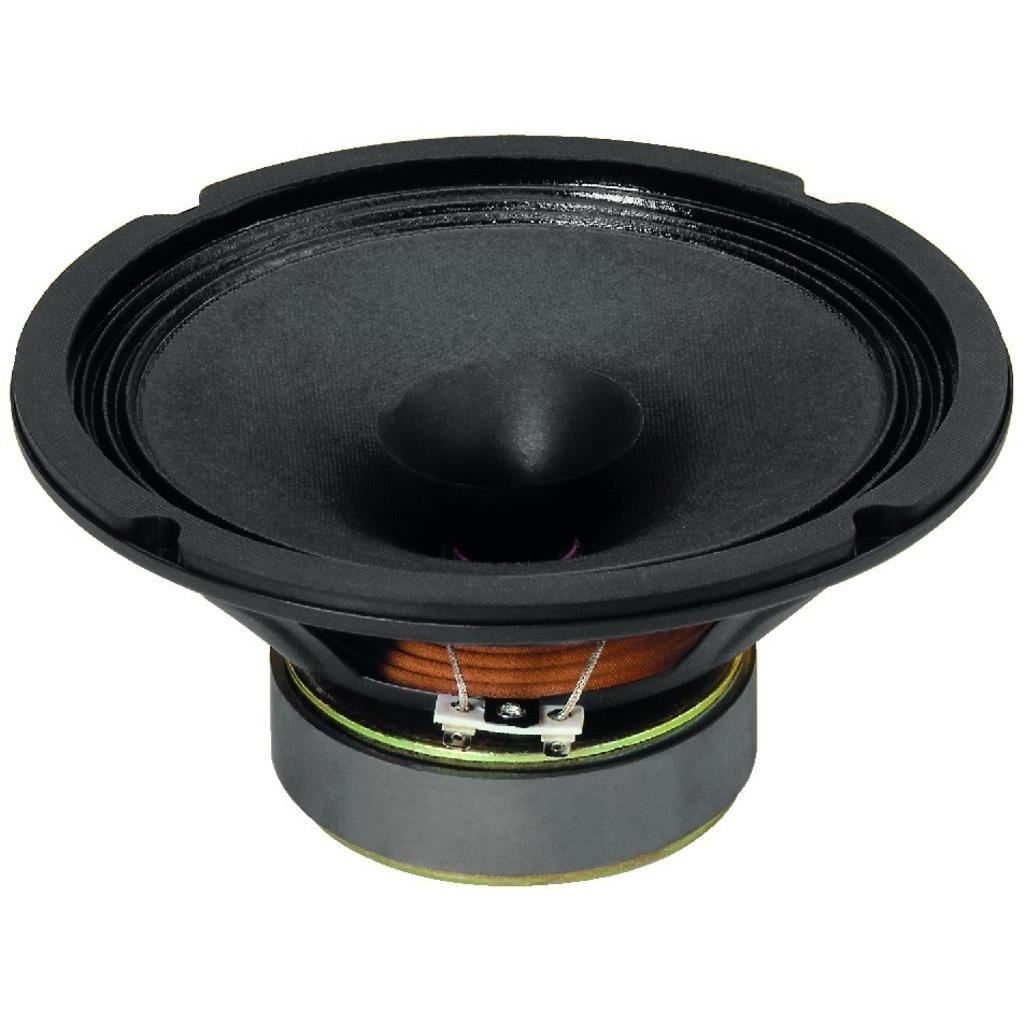

Luidspreker monacor sp200x

Luidspreker monacor sp200x
Hi-fi full range speaker, 70 WMAX, 35 WRMS, 8 O

One-piece rubber gasket
Very good linearity
High efficiency
For PA systems of special sound requirements or in large column speakers
HOBBY HiFi 01/2012

"The SPH-200X impresses by an excellent sound quality.

Kenmerken:
– Impedance (Z): 😯
– Resonant frequency (fs): 50Hz
– Max. frequency range: f3-15,000Hz
– Music power: 70WMAX
– Power rating (P): 35WRMS
– SPL (1 W/m): 92dB
– Suspension compl. (Cms): 0.77mm/N
– Moving mass (Mms): 11.5g
– Mech. Q factor (Qms): 1.96
– Electr. Q factor (Qes): 0.7
– Total Q factor (Qts): 0.52
– Equivalent volume (Vas): 48 l
– DC resistance (Re): 7.2O
– Force factor (BxL): 6.1Tm
– Voice coil induct. (Le): 0.3mH
– Voice coil diameter: 25.5mm
– Voice coil former: aluminium
– Linear excursion (XMAX): ±1.6mm
– Eff. cone area (Sd): 210cm2
– Magnet weight: 500g
– Weight: 1.3kg
