batteryguard unitek bg30

Unitek

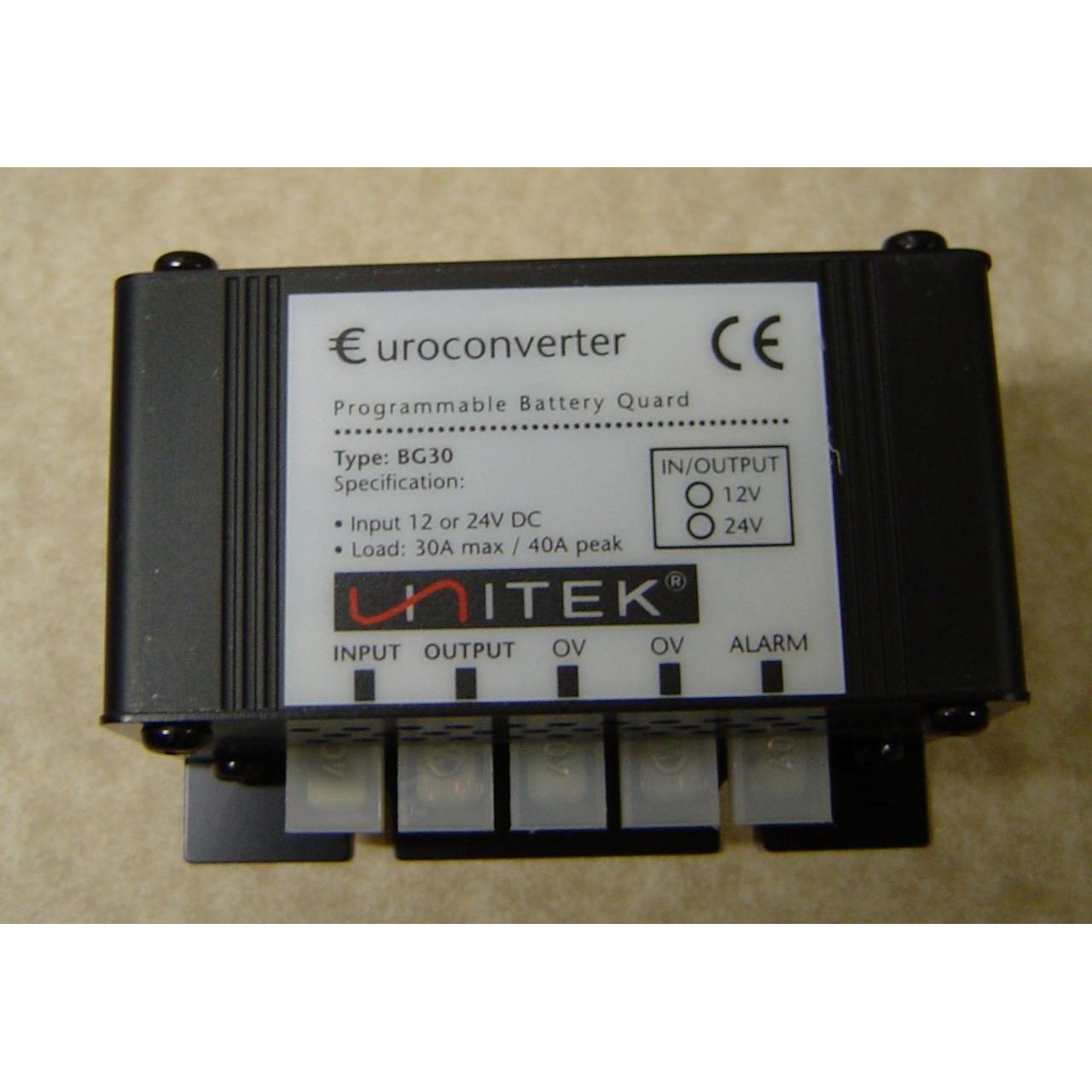

Type: BG30 Battery Guard
Categorie: Accessories (TRX/RX)
Subcategorie: Power: Battery Guards
Short description: 12VDC or 24VDC depending on jumper setting, 25A nominal, 30A max, 40A peak.
Long description: The universal programmable Battery Guard prevents excessive discharge of the battery and protects electric appliances against over-voltage.

If the battery stays under the disconnect level longer than 15 seconds, the alarm contact will be activated. The BG30 will disconnect the connected equipment when the situation does not change within a minute. At the same time the alarm contact will turn off.

When the battery voltage will rise again the equipment will be connected again as soon as the voltage reaches the Switch-On level. At an overvoltage , by example on account of a bad alternator, the equipment will be disconnected also tom prevent damage to the equipment. The alarm will be activated on and off for a minute.

Technical Specifications:
System Voltage = 12/24VDC (depends on jumpers
Output current = 25A
Upper Voltage alarm = starts at 16V (12V system) or 32V (24V system)
Standby current = 7mA max
Accuracy voltage level = 2%
Fuse (F) = 30A
Dimensions = 49 x 88 x 68 mm

Attention: All connections should be connected via a fuse (value equal to the maximum current)
